DefCon 24 HHV Reverse Engineering Challenge

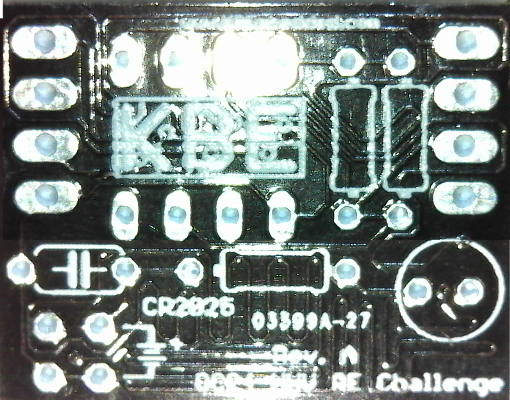

PCB Front

Sadly, we were unable to attend DEF CON this year.

Fortunately, bunni and the folks over at KBEmbedded were nice enough to hook us up with a free Hardware Hacking Village Reverse Engineering Challenge board so we could partake in the pain and frustration remotely.

Read More

Power Test Board

Power Test Board Layout

The power circuit for the GotT was designed to be a close to 'bulletproof' as was reasonably possible while still being fairly efficient in terms of power loss and heat.

It is designed to output a constant +3.3V DC at up to about 500mA and includes protection against reverse voltage, overcurrent, overvoltage, and over-temperature.

Read More

WT32i Test Board

WT32i Test Board Layout

This is a test board for the Silicon Labs WT32i Bluetooth audio module (formerly Bluegiga).

Read More

Lights Test Board

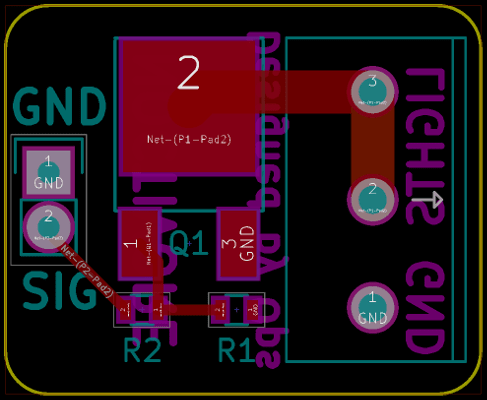

Lights Test Board Layout

Lights, motors, relays, and solenoids often operate on +12V DC and present a large electrical load.

Many microcontrollers today operate at +3.3V DC and can only source a relatively small current so a method is needed to switch a large load with the output of only a small microcontroller pin.

Read More

PWM Isolator Test Board

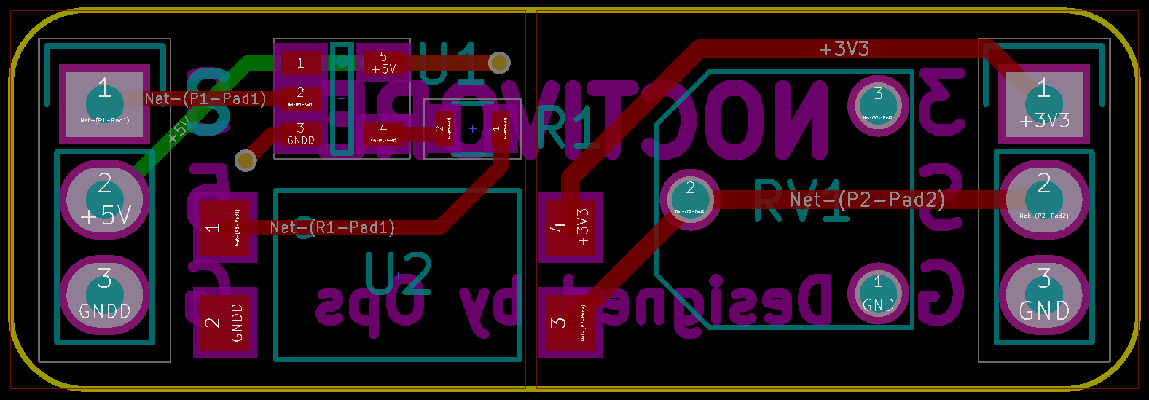

PWM Isolator Test Board Layout

The GotT has the ability to read in a PWM signal like the ones output by most R/C receivers.

While most receivers do include 5V regulated output it cannot be assumed that the receiver, and whatever it is connected to, share a common Ground connection.

Arbitrarily shorting receiver Ground to GotT Ground, for instance, could release the magic smoke. Thus, isolation is necessary.

This isolation is achieved through the use of an opto-isolator.

Read More
